Supplies Fortune 500 companiesWME-ET430 Handheld LCR Meter LCR Tester Capacitance Inductance Meter Frequency 100KHz Accuracy 0.3%
Main Features: lcr Tester, handheld Lcr Meter, accuracy 0.3% Meter, industrial Test Equipment, digital Lcr Tester, industrial Application Meter, lcd Handheld Meter, lcd Display Lcr Meter Product
Inquiry
Send Email
Please share the tool to inspire more productive people! Spread the world!
Frequently Asked Question
You May Ask
We develop new products with your requested quality through or R & D department, we design according to customers need with our professional design team, all is possible if the MOQ is meet with production requirement.
We have to charge samples fee, and when you place orders, we'll refund your sample cost. Or we can provide free samples to you with freight collect.
We can provide spare parts for after-sales service, in generally, we can offer 1% free spare parts.
Our payment term is 30% deposit, balance before send out of goods, then we send you copy of B/L.
We have GS/CE/Rohs/UL/ETL certificates.
1. We are registered certified manufacturer for Power Tools.
2. We have more than 110 employees with more than 10 years of working experience, our mass production capability, quality control and service can offer you best service.
3. We have been working with customers from Europe, America, East Asia and Africa for long time cooperation relationship.
2. We have more than 110 employees with more than 10 years of working experience, our mass production capability, quality control and service can offer you best service.
3. We have been working with customers from Europe, America, East Asia and Africa for long time cooperation relationship.
MOQ 100pcs for logo on the machine itself, MOQ 200pcs for Color Box, MOQ 100pcs for plastic tool box, MOQ 500pcs for unique design tool box.
Always a pre-production sample before mass production, and always final Inspection before shipment. Third party quality inspection can be applied if you need.
Sample order is 3-5 days, mass order is 7-15 days.
Usually ship by DHL, UPS, FedEx or TNT, It can arrive in 3-5 days. And shipped by sea, by truck are also available. It is based on your choose and order quantity.

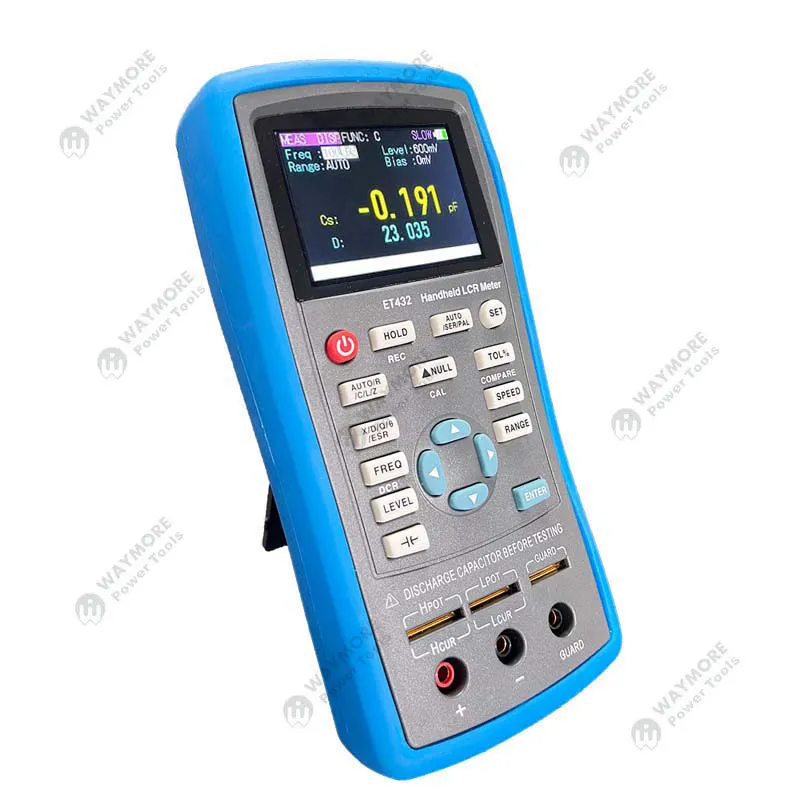

Handheld LCR Meter
Products Description
Version Comparison:

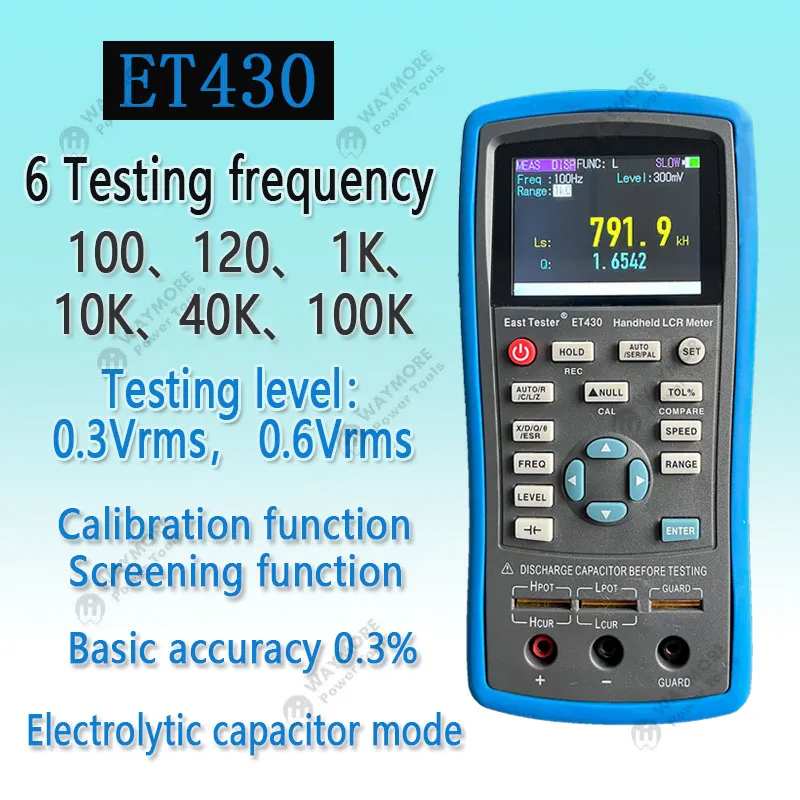

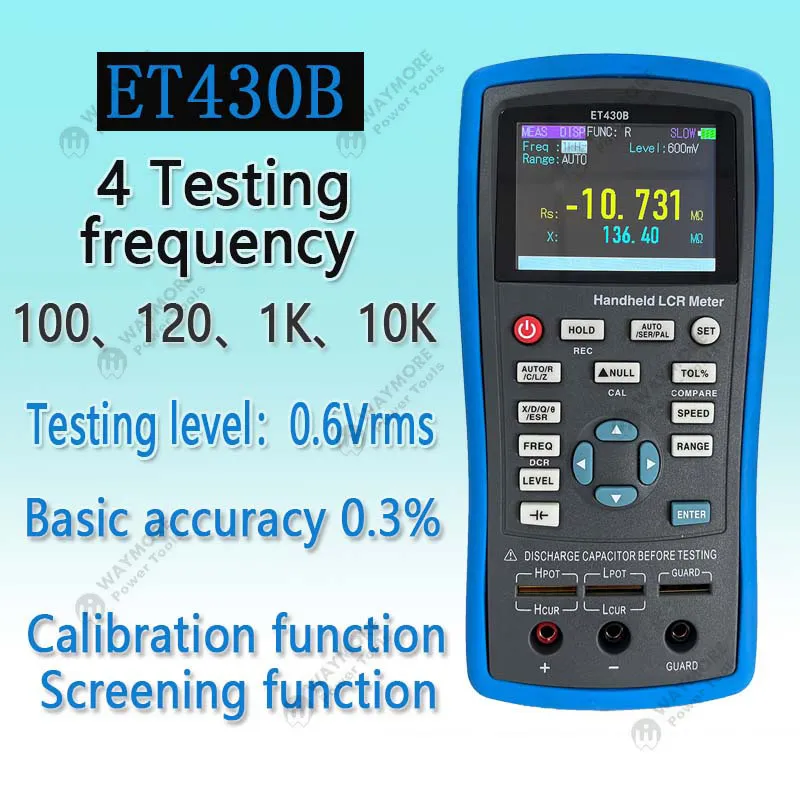

* ET430: 100kHZ, accuracy 0.3%, 2 level points, electrolytic capacitor

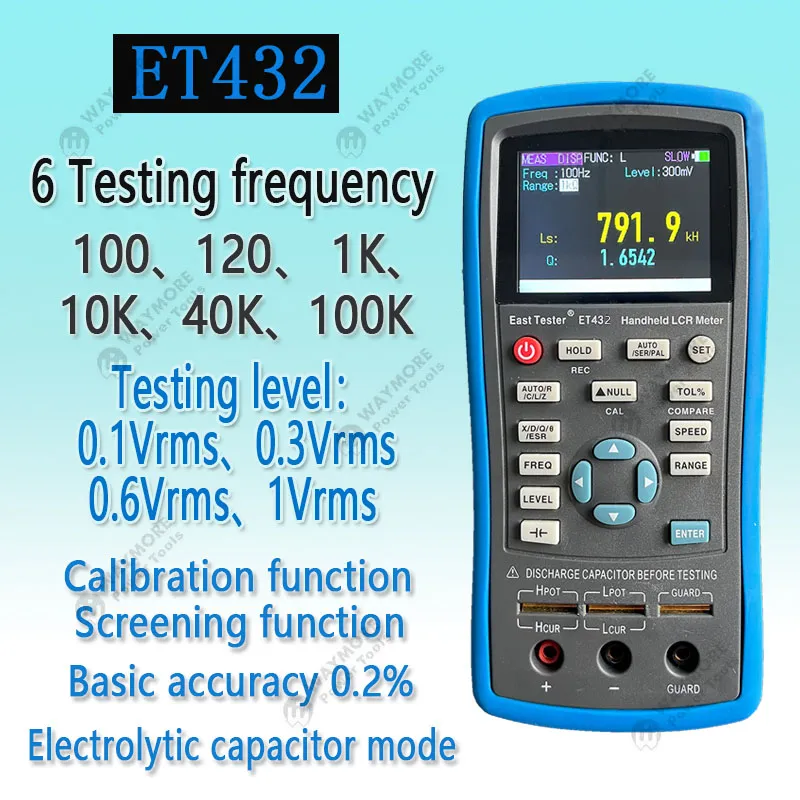

* ET432: 100kHZ, accuracy 0.2%. Internal bias, 4 level points, electrolytic capacitor and DCR measurement function
Product Features:
- Measurable frequency up to 100kHz, continuously adjustable at a step of 1 Hz.
- Measurement of DC resistance and electrolytic capacitor supported
- Internal bias voltage output (0mV-500mV)
- Automatic identification of measured component
- Support for screening and deviation measurement
- 2.8" TFT display screen, a 4 1/2 digit display
- USB communication interface
- Power supply by high-capacity lithium battery
- Support for SCPI protocol
- System configuration available for setting of language, buzzer and display brightness
- Adjustable measuring speed
- Manual and automatic range
- Open circuit and short circuit calibration
- Multiple testing ports
Package Included:
- 1 x Set of LCR Meter
Specification
| Manufacturer |
Item No.
|
Package Dimensions
|
Weight
|
Power Supply
|
| Waymore Tools | WME-ET432 | 26X27X7 cm | 2.50 kg | Lithium Battery |
Product details
【Test frequency/level/ accuracy】：100Hz,120Hz,1KHz,10KHz,40kHz,100KHz; 0.6Vrms; 0.30%
【Measuring rate】:Main parameters: 5 bits, secondary parameters: 5 bits; L：0.000μH～2000H，C：0.000pF～20.000mF，R：0.0001Ω～200.00MΩ
【Measurement parameters】Measurement parameters: Main parameters: L/C/R/Z, Sub-parameters: X/D/Q/theta/ESR; Electrolytic capacitor mode supported
【Others】: 2.8’’ TFT display; Adjustable backlight brightness; automatic shutdown time; open circuit and short circuit calibration

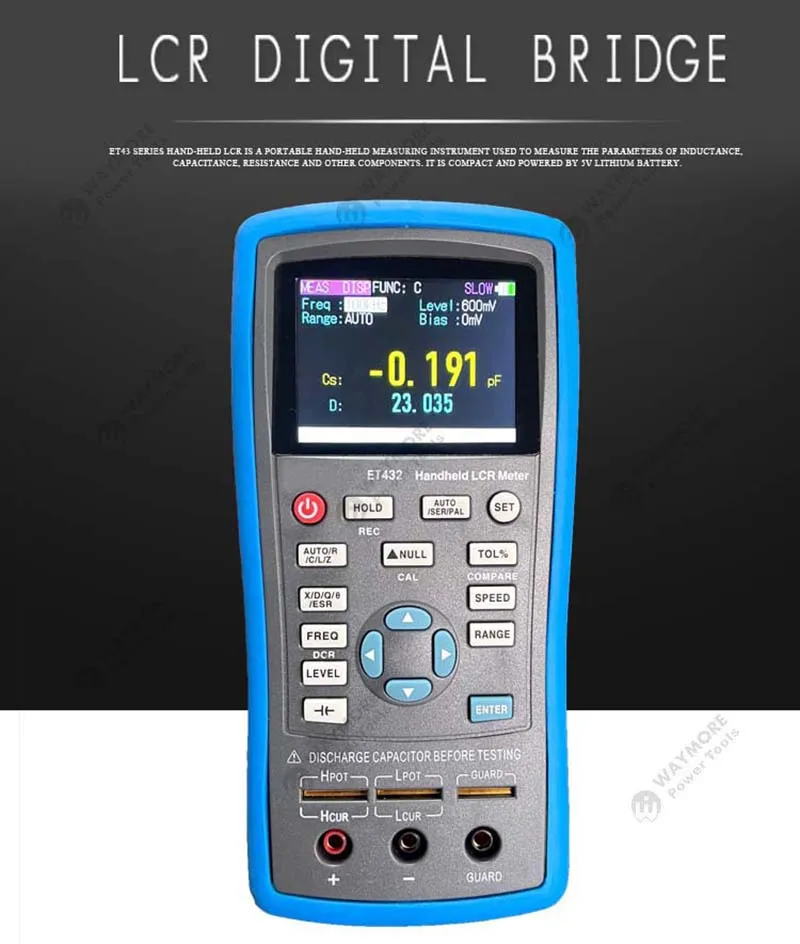

ET430 hand-held lcr Meter sets 2.8 inch TFT display, flexible and convenient button operation and full speed USB communication in one; large capacity lithium battery can ensure long-term work. Functionally, it has not only comprehensive measurement parameters, but also deviation measurement and screening. The output frequency can be continuously adjusted.
【Main features】: ¤ Test Frequency:100Hz,120Hz,1KHz,10KHz,40kHz,100KHz;Accuracy: 0.3%
¤ Supporting Electrolytic Capacitance Measurement;
¤ Automatic Recognition of Component Measurement;
¤ Support screening and deviation measurement;
¤ 2.8-inch TFT display, 4-bit semi-display;
¤ USB communication interface;
¤ Large capacity lithium battery power supply;
¤ Support SCPI protocol;
¤ Provide system settings, can configure language, buzzer, screen brightness and so on according to their own requirements;
¤ Adjustable measuring speed, manual and automatic range;
¤ Short circuit correction with open circuit; ¤ Provide multiple test ports.
【Standard accessories】:
¤ Mini-USB data Wires; ¤ Power adapter;

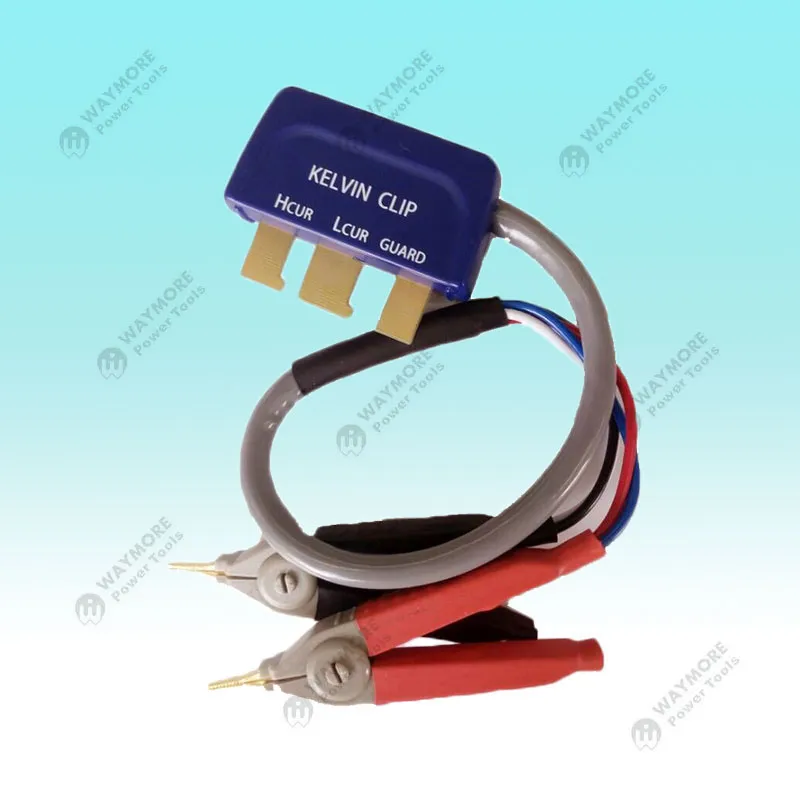

¤ Short circuit chip;
¤ Red&black rubber plug;
¤ Large capacity lithium battery
